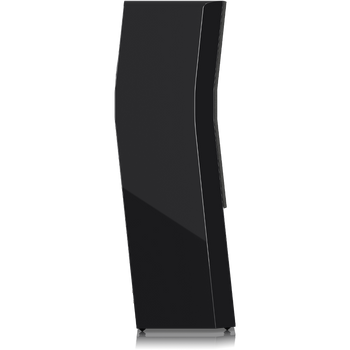

Ultra Evolution Titan Speaker

Ultra Evolution Titan Speaker

Unprecedented design and technology from a 3-way tower speaker. Outperforms everything in its class with pristine clarity, stunning dynamics, and deep, authoritative bass.

Ultra Evolution Titan
Ultra Evolution Titan

Select Finish:
Piano Gloss White
Piano Gloss White
Piano Gloss Black
Black Oak Veneer

$3,100.00 CAD


    The Culmination of Sonic Obsession.

    Ultra Evolution Titan represents the culmination of SVS breakthroughs in driver design, component materials, and cabinet architecture, married with a relentless passion for audio excellence. The science of sonic perfection in harmony with a love of convincing and immersive sound.

    The Titan’s cabinet and driver dimensions are slightly smaller than the flagship Ultra Evolution Pinnacle, but its performance is no less impressive.

    Never has this fusion of design elements existed in a single speaker. Acoustically centered time alignment, diamond coated aluminum dome tweeters, force-balanced woofer array and other advancements embody an uncompromising approach to floorstanding speaker design.

    Acoustic innovations are brought to life with painstaking anechoic and real-world measurement and voicing. This final bit of artistry places Ultra Evolution Titan among the highest fidelity tower speakers ever created.

    Our mission has always been to ignite passion for transcendent music and home theater experiences with the truest sonic playback.

    The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Evolution Pinnacle deeply connects you to the emotion of sound.

    Frequency Response / Acoustic Data:

    • Frequency Response: 27Hz to 40kHz (+/-3 dB)
    • Nominal Impedance: 6 ohms
    • Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
    • Recommended amplifier power: 20 – 300 watts

    Speaker Specs:

    • Floor-standing Tower Loudspeaker
    • Piano gloss black, piano gloss white, real black oak veneer finish options
    • Dual gold-plated 5-way binding posts
    • Dual 2.5” wide-flared rear-firing ports   
    • Cloth grille with magnetic retention system
    • Elastomer screw-in feet – adjustable for level
    • Spiked metal screw-in feet included – adjustable for level
    • Cabinet Dimensions: 46.54” (H) x 9.8” (W) x 17.3” (D) / 1182mm (H) x 249mm (W) x 439.3mm (D)
    • Overall Dimensions: 47.13” (H) x 9.8” (W) x 17.3” (D) / 1197mm (H) x 249mm (W) x 439.3mm (D) (includes grille, feet, and binding posts)
    • Weight Packaged: 80.5 pounds / 36.5 kgs
    • Weight Unboxed: 69.7pounds / 31.6 kgs

    Driver Specs:

    1” Diamond Coated Tweeter

    • FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
    • Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
    • Silver tinsel for optimal signal transfer and power handling.

    4.5” Midrange Drivers

    • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    • Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    • Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.

    6.5” Woofers:

    • Long stroke motor and suspension for high output.
    • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    • Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    • Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

    Crossover & Cabinet Specs:


    • 3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
    • Tweeter-to-Midrange crossover: 1.9 kHz
    • Midrange-to-woofer crossover: 160 Hz


    • Acoustically Centered Time Alignment architecture.
    • Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
    • Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
    • Quad 6.5” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
    • Dual 4.5” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
    • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
    • Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
    • FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

    Inspired Design, Reference Performance.

    Speaker Image

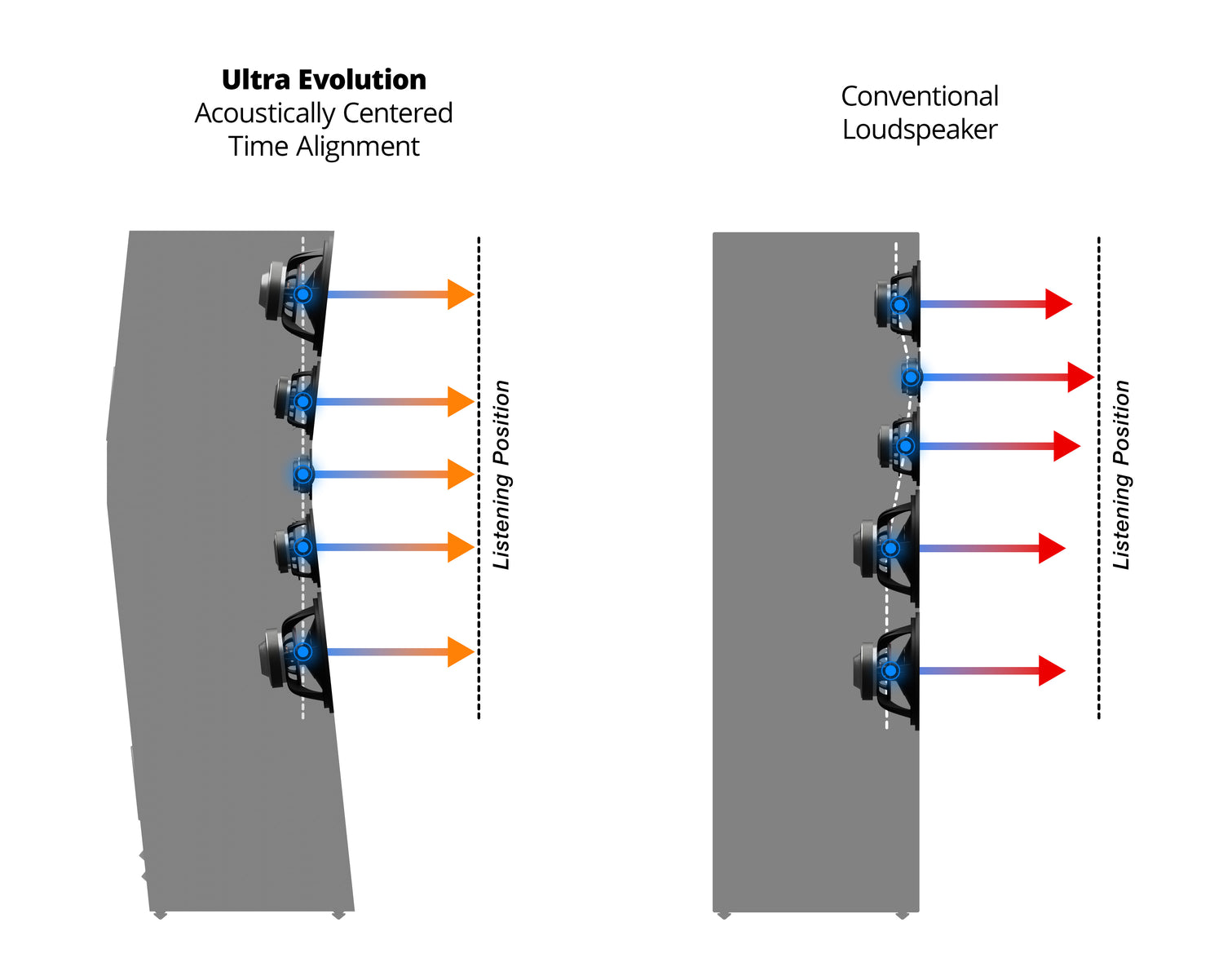

    Acoustically Centered Time Alignment Cabinet Architecture

    Curved front baffle aligns the sonic emanation point of all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant.

    Maximizes phase coherence for more convincing and immersive soundstage with pinpoint accuracy and imaging.

    Midrange drivers and woofers positioned above and below the tweeter allow for seamless crossover blending to create an idealized “point-source” where sound flows from a single point in front of the speaker to optimize dispersion characteristics.

    Diamond Coated Aluminum Dome Tweeter

    Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties.

    This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and unveiled highs with no measurable distortion.

    The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange.

    Organic cell lattice tweeter diffuser protects the dome and employs semi-random pattern derived from organic cell structures to improve off-axis response and maximize the listening “sweet spot.”

    Speaker Image
    Speaker Image

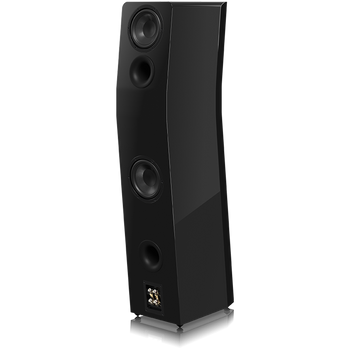

    Quad 6.5” Glass-Fiber Woofers in Force-Balanced Array

    Dual opposing active woofers on the top and bottom of the cabinet render effortless low frequency response while addressing room modes. Deep, authoritative bass is evenly spread throughout the listening area.

    Mechanical energy from each front-firing woofer is equaled inside the cabinet by the rear-firing woofer eliminating mechanical coloration for pure, accurate low frequencies at any playback level.

    Dual 4.5" Glass Fiber Composite Midrange Drivers

    Superb stiffness to mass ratio on dual driver array renders stunning dynamics with flawless tonal accuracy.

    Speaker Image
    Speaker Image

    Unrelenting Attention to Detail

    Separate, acoustically tuned internal chambers for the woofers and midrange drivers optimize separation and eliminate any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum.

    Uncompromisng 3-Way crossover with premium components seamlessly blends driver output. Subtle musical details are rendered with breathtaking clarity, while massive dynamics radiate with weight and control from the highest to lowest octaves.

    Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

    Chamfered front baffle minimizes edge diffraction for optimal off-axis frequency response.

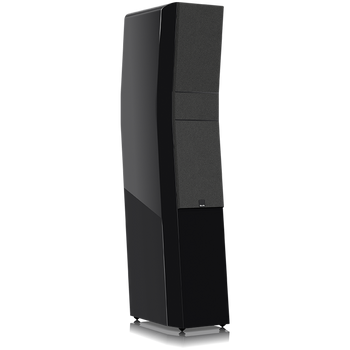

    Neodymium magnetic grilles

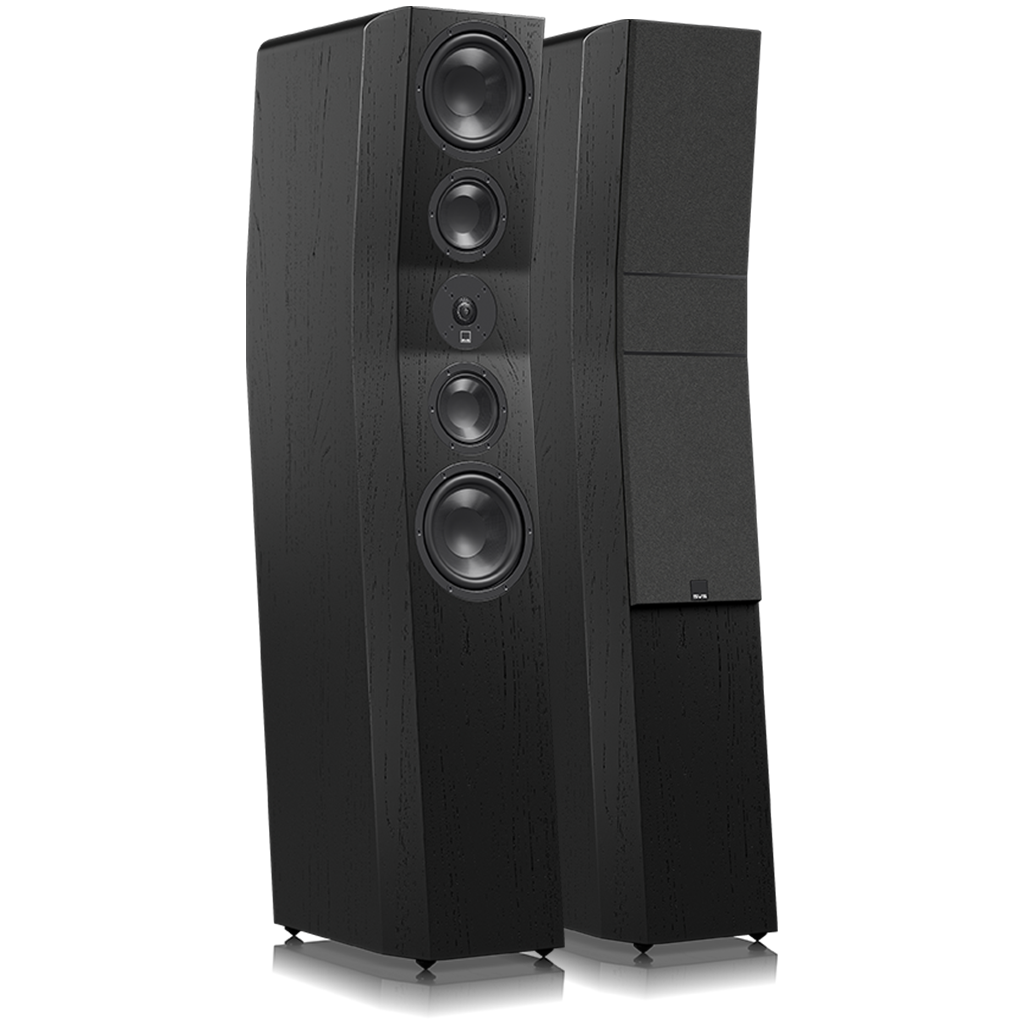

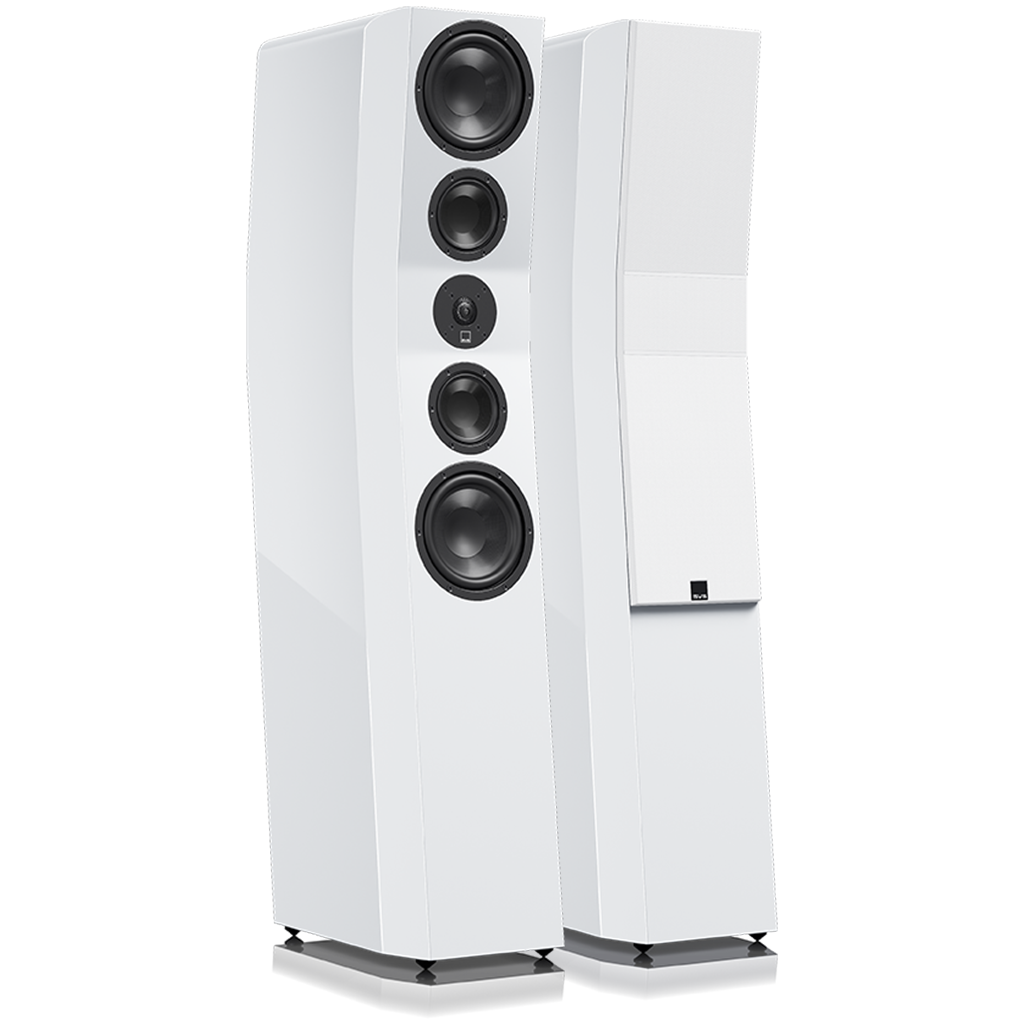

    Stunning Piano Gloss Black, Piano Gloss White, and Black Oak Veneer Finish
