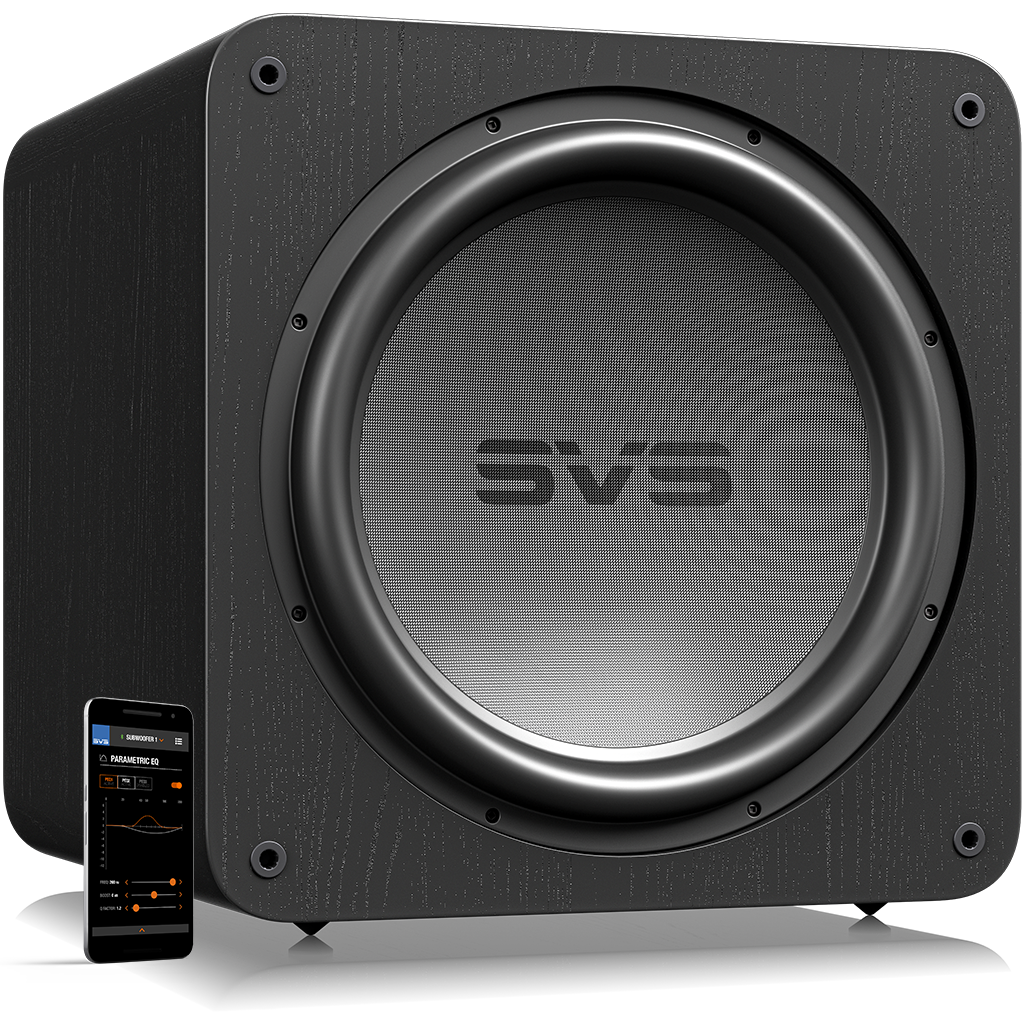

SB17-Ultra R|Evolution
SB17-Ultra R|Evolution
each
each
Unit price per
A quantum leap forward in design and performance with multiple groundbreaking innovations - the most formidable and sophisticated sealed subwoofer ever developed.
All-new 17-inch driver with first-ever dual 8-inch voice coils. The most powerful amplifier ever deployed in a consumer subwoofer with unprecedented dual mono-block design married to the extreme intelligence of a 295MHz DSP. All managed by the most sophisticated subwoofer control app, now with auto EQ room correction (available soon via over-the-air update).
- 45 Day Risk-Free In-Home Trial
- Fast & Free Shipping and Returns
- 5-Year Unconditional Warranty
Most Frequently Bought Together
Effortless Output from High-Excursion 17-inch SVS Driver
It was a ground-up process designing the largest, most formidable driver ever deployed in an SVS subwoofer. An all-new dual voice coil, suspension, basket, and extreme-excursion surround achieve chest-compressing sound pressure levels with flawless tonal accuracy.
- Lightweight and rigid 17-inch glass fiber composite cone with optimal stiffness-to-mass ratio for maximum efficiency and acoustic linearity
- 55lb four-piece toroidal ferrite electromagnetic motor generates massive force with precise control, remaining authoritative yet detailed and controlled
- Extreme-excursion catenary SBR rubber surround maintains pure, long-throw pistonic driver motion
Unerring Control from Revolutionary Dual 8-inch Voice Coils
Unprecedented dual 8-inch voice coils ensure stable transfer of electro-magnetic current to the 17-inch driver for authoritative output and pinpoint driver control.
- 4-layer bi-filar dual voice coils conduct the massive power from the dual-mono amplifier to the motor with maximum thermal efficiency, resulting in effortless acoustic output
- Copper clad aluminum voice coil wire combines the best properties of both elements, yielding ideal thermal capacity and magnetic field strength
First Ever Dual Mono STA-2800D Amplifier Design with Discrete MOSFET Output
The sonic muscle behind the most powerful and highest fidelity SVS subwoofer amplifier ever developed. SB17-Ultra R|Evolution STA-2800D features technological innovations never offered before in a consumer subwoofer amplifier with breakthroughs to ensure refined behavior and pristine response at any volume.
- Limitless headroom from dual mono-block Class-D amplifiers with MOSFET output stages
- Each amp drives one of the dual 8-inch voice coils within the motor to assert pinpoint control and maximize power fed to the driver
- Eight 60 Amp 200 Volt MOSFETs deliver extreme high current for reference-level output with maximum efficiency
Performance Enhancing Switch Mode Power Supply
Regardless of the power coming out of your household circuit, the SB17-Ultra R|Evolution always maintains peak performance and remains impervious to voltage fluctuations.
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality and audio performance
- Ensures clean and consistent 160V rail voltage and optimal power delivery from a standard 15-amp home circuit
- Power-Factor-Correction (PFC) time aligns the AC voltage to the AC current resulting in less heat, greater efficiency, reliable peak power output, and the ability to maintain rated power over a wide-range of voltages
- FEA optimized convection cooling system has no exterior heatsinks, an extraordinary feat for such a powerful amplifier
Extreme Subwoofer Intelligence – 295 MHz Analog Devices DSP
Orchestrating the cutting-edge amplifier, motor, and driver ecosystem is the most sophisticated DSP ever deployed in a consumer subwoofer.
- Accurately shapes in-room frequency response with absolute precision for faithful signal reproduction
- Monitors every function of the amplifier to stabilize AC voltage delivery to the power supply to maintain consistent peak output
- Multi-point thermal, voltage, and current monitoring systems ensures maximum output and efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and pristine fidelity
SVS Subwoofer Smartphone Control App Now with Auto EQ Room Correction
Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the SVS Subwoofer Control Smartphone app allows convenient subwoofer tuning and management.
- Controls for volume, low pass filter, phase, polarity, six parametric equalizers, room gain compensation, tuning modes, power management settings, and more
- Includes three convenient memory presets for fast and easy system adjustments to match your listening preferences – music, movies, night mode, and more
- Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features and includes a convenient “Display Flip” function
SVS Subwoofer Auto EQ Room Correction
Achieves pristine fidelity by resolving all the acoustic issues caused by your room in a few easy steps.
- Automatically tunes subwoofer output using your smartphone microphone or an external microphone and the SVS subwoofer app
- Applies equalization, capitalizes on available room gain, and hones in-room frequency response at main listening positions for optimal in-room performance
- Will be available soon via an over-the-air SVS Subwoofer Control App update
Click image to enlarge
Google Play and the Google Play logo are trademarks of Google Inc.
Frequency Response / Acoustic Data:
* Frequency response graph does not denote maximum output capability- 15Hz to 320Hz +/-3dB
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
Subwoofer Specs:
- Piano Gloss Black and Black Oak Real Wood Veneer finishes
- Front Firing 17-inch high-excursion SVS driver
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover to shield driver
- Robust Medium Density Fiberboard (MDF) cabinet construction with internal bracing for resonance free performance at highest drive levels
- Screw-in Iso-elastomer feet reduce noise artifacts and improve stability
- Amplifier Rear Panel OLED and control interface provide fast and direct control of the most important features. Includes “Display Flip” function for viewing upside down from behind
- Dimensions (with grille): 20.0” (507mm) H x 19.5” (495mm) W x 21.2” (537mm) D
- Dimensions (without grille): 20.0” (507mm) H x 19.5” (495mm) W x 20.3” (516mm) D
- Shipped Dimensions: 24.8” (630mm) H X 24.9” (633mm) W X 29.8” (757mm) D
- Weight (unboxed): 124.0lbs (56.25kg)
- Shipped Weight: 136.0lbs (61.7kg)
Driver Specs:
- Proprietary SVS 17-inch long-throw driver with high-precision tuned overhung motor configuration
- 63.76lb (28.92kg) pound Woofer with 54.17lb (24.57kg) pounds motor
- 48.9mm Xmax, 81.78mm Xmech precision aligned excursion
- 8” diameter Voice Coil with high current 4-layer bifilar copper-clad aluminum wire windings
- Dual Voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output
- High Temperature glass-fiber composite former/bobbing
- Four-piece high-grade oversized Y35 Ferrite magnet motor produces effortless on-demand driving-force for subtle and over-the-top low frequency sonics
- Dual shorting rings reduce gap inductance and lower distortion
- Dual 25-strand copper-alloy and Nomex composite high-temperature leads woven through the spider provide a pristine electrical connection from the amplifiers to the voice coils
- Precision machined and narrow tolerance low carbon 1010 steel top-plate and oversized T-yoke with integrated pole-piece extension for optimal magnetics and thermal capacity
- Dual Nomex extreme excursion linear suspension spiders
- Custom injection-molded extreme-excursion catenary SBR rubber surround ensures flawless pistonic motion for pinpoint control and accuracy without distortion at reference drive levels
- Premium glass-fiber laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio ensures a light, ridged, and neutral radiating surface about to move massive amounts of air with crisp precision
- High-density 17” Powder-coated cast aluminum basket FEA optimized for maximum rigidity, tensile strength, and energy transference
- Nickel-plated high-tension spring terminals provide secure connections
Amplifier Specs:
- Massively powerful SVS STA-2800D Class D amplifier design
- Dual-mono discrete Class D amplifiers generate endless power from eight massive 60A 200V MOSFETs, resulting in lower EMI and highest efficiency
- High resolution 295Mhz Analog Devices Audio DSP with double precision 56bit filtering. Over 5x the processing power of previous subwoofers, the most advanced subwoofer processor available for flawless low frequency audio reproduction
- Monitors every function of the amplifier ensuring precisely regulated clean voltage is delivered to and from the switch mode power supply and maximum current is pushed to the driver’s voice coils
- DSP Continuously runs complex power management algorithms and multi-point thermal, voltage, and current monitoring systems to optimize AC voltage delivery to the power supply for continuous peak performance with maximum performance and greatest efficiency
- Advanced digital audio processing and DACs (Digital-to-Analog Converters) with 120 dB Signal-to-Noise Ratio provide greater headroom, lower noise, and flawless fidelity
- All new Switch Mode Power Supply (SMPS) includes a two-stage 100v-240v full range active Power Factor Correction (PFC) to pre-regulate mains to solid 390V DC regardless of mains voltage or quality. Ensures a consistent 160V rail voltage for dual-mono amplifiers over a wide-range of AC voltages
- Onboard AC line conditioner filters and stabilizes incoming voltage, corrects waveform distortions, and eliminates electromagnetic and radio interferences to optimize signal quality
- Pioneering convective cooling plate design pulls cool outside air through vents at the bottom of the amplifier plate, flowing over the amplifier components and internal heat sinks, eliminating the need for an external heatsinks
- User auto EQ and DSP limiter settings specifically for the 17-Ultra allow the subwoofer to take control of a room and pressurize it with accurate, heart-pounding, acoustically tuned bass
- XLR and RCA stereo input/output with ultra-wide input voltage bandwidth compliant with consumer and professional audio applications up to 4V line level input
- Unbalanced RCA 10kohm input impedance (compatible with consumer and professional audio up to 4Vrms inputs)
- Balanced XLR 14kohm input impedance (compatible with consumer and professional audio up to 14Vrms / +24dBu inputs) OLED and control interface with easy control of the most important features
- OLED and control interface with easy control of the most important features
- USB provides power for the SVS SoundPath Wireless Audio Adapter (sold separately) which eliminates the need for a cable run to the subwoofer from the source component.
- Auto/On and Trigger options through App for maximum installation convenience (3.5mm trigger Input 3-12V AC/DC)
- 3.5mm IR input for easy integration with control systems
- Green 0.5-watt low standby power consumption
- RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Features:
- Compatible with Apple iOS, Google Android, and Amazon Fire platforms, the industry leading SVS Subwoofer Control Smartphone app allows convenient and intuitive management of all subwoofer controls.
- The Analog Devices DSP supports a comprehensive menu of functions, including volume, fully adjustable low pass filter, phase, polarity, six PEQs, room gain compensation, tuning modes, power management settings, and more.
- Includes three convenient memory presets for fast and easy global system adjustments to match listener preferences.
- Subwoofer Auto Room Equalization (available via over-the-air app update soon)
- Uses your mobile device’s built-in microphone to measure the acoustic performance of your subwoofer in your room
- Automatically calculates equalization filters to optimize the subwoofer and room combined performance at your listening position
- Subwoofer Auto Room Equalization (available via over-the-air app update soon)
- Easy-to-follow tutorial provides clear guidance for all functions
Included Accessories
- Protective non-resonant extra-thick ABS grille frame with fabric mesh cover
- Iso-elastomer feet
- Extra heavy-duty, high current 6’ power cord
- Quick Start Guide
- SSXVerified BuyerReviewingSB17-Ultra R|EvolutionI recommend this productContent use MusicProduct use 2-channel stereoRated 5 out of 5 stars4 days agoDont be fooled, this is a phenomenal musical sub!
I have had SV subwoofers since 2004, starting with the PB2-Plus line. Everyone knows their subs hit hard and deep for home theater content and that’s why I went with them originally.
Recently I upgraded my two channel space and got a pair of Wilson Audio MAXX series 3 loudspeakers, paired with a D’agastino Progression pre-amp and stereo amplifier. My vocabulary cant adequately capture what it is like listening to music on these speakers, but I found that there was a bit more bass extension in my room that was lacking and wanted a subwoofer to help bridge the gap. I reached out to my dealer who recommended REL, saying it would pair perfectly with my system.
Unfortunately, the REL models I was looking at were simply too big for the space I had. Then I came across a glowing review of the SB17-R, and its dimensions were exactly perfect for the space I had. I talked to SVS, expressing my concerns that their subwoofer, while excellent on paper, may not be fast and accurate enough to keep up with my system. I was reassured that they would happily put up their subwoofer against any of the best and know it was more than capable.
So I ordered one, set it up, and let me tell you, it’s outstanding. It’s not working hard in my set up but it’s filling in the low end quite nicely and added just that little bit I wanted to feel the music in my chest. Couldn’t be happier.
I got to meet a couple of the guys from SVS at Audio Advice Live a few weeks prior and expressed my gratitude at…
- JMJohn M.Verified BuyerReviewingSB17-Ultra R|EvolutionI recommend this productContent use Music, MoviesProduct use Home theater surround sound, 2-channel stereoRated 5 out of 5 stars5 months agoOutstanding Subwoofers!
I am in the process of upgrading my theater room to also be a dedicated 2-channel listening room. I have been taking room response measurements with my SVS Ultra Evolution Pinnacle front speakers, center channel, and two SB17 subwoofers for about two weeks now. I am driving this all with an 8-yr old SONY A/V receiver until I purchase new Anthem STR preamp and amp separates to complete the upgrade. All I can say so far is that I absolutely love the SVS Ultra Evolution Pinnacle line and your subwoofers.
Keep in mind that managing room acoustics is half the battle. I downloaded the free copy of REW measurement software (please donate to these guys - this is awesome) and got a good USB calibrated mic. With a little practice and following some theoretical guiding principles, I took tons of measurements to prove I found very good placements for speakers and subwoofers, and I adjusted what I could (speaker levels, sizes, crossovers, distances, etc) with my old SONY A/V, and I have already reached nirvana! Thankfully, your subs have plenty adjustments on their own, and this really helped my initial setup.
I don't even have independent subwoofer outputs yet (I will when I get the Anthem STR preamp), but after adjusting what I could, this system already sounds incredible. I was amazed at the improvement! Lower bass sounds are very full but not boomy in any way. Kick drums and other percussion sounds are crisp and in your face, as well as bass guitar notes. The vocals and…
- GSGeoffrey S.Verified BuyerReviewingSB17-Ultra R|EvolutionI recommend this productContent use Movies, MusicProduct use Home theater surround sound, 2-channel stereoRated 5 out of 5 stars6 months agoHuge Upgrade
This Sub replaced a 26 year-old B&W ASW4000 , which in its day was a great performing Sub. All I can say is that Subs have come a long way in that time! This SVS Sub is a huge improvement in every aspect - I really appreciate the combination of power and control, which is awesome for music and movies. Great value too!
- DDannyVerified BuyerReviewingSB17-Ultra R|EvolutionI recommend this productContent use Movies, MusicProduct use Home theater surround soundRated 5 out of 5 stars8 months agoSVS SB 17 Ultra
One month with the SVS SB-17 Ultra R|evolution and my home theater has been transformed. That 17-inch driver is a monster. Phenomenal deep bass, huge amplitude, and it stays clean even when you push it to reference level. If you want earth-shaking bass for movies like Interstellar and Tron: Legacy, Deadpool and Wolverine (and killer musicality), this is it. Absolute winner from SVS.
- RPRussell P.Verified BuyerReviewingSB17-Ultra R|EvolutionI recommend this productContent use MoviesProduct use Home theater surround soundRated 5 out of 5 stars10 months agoRoom pressure.
Now I have two SB 17s my movie room is pressurized the way I like thanks SVS.
17-Ultra Series Technology
A Quantum Leap Forward in Subwoofer Design and Performance.
The 17-Ultra Series represents a quantum leap forward in subwoofer design and performance. Leveraging cutting-edge technologies from previous models, it delivers unparalleled bass accuracy and control.
