Ultra Evolution Pinnacle Speaker

Ultra Evolution Pinnacle Speaker

Flagship SVS tower speaker is an innovation tour-de-force standing toe-to-toe with the finest speakers in the world delivering high-fidelity sound for both two-channel audiophiles and home theater fans.

Ultra Evolution Pinnacle
Ultra Evolution Pinnacle

Select Finish:

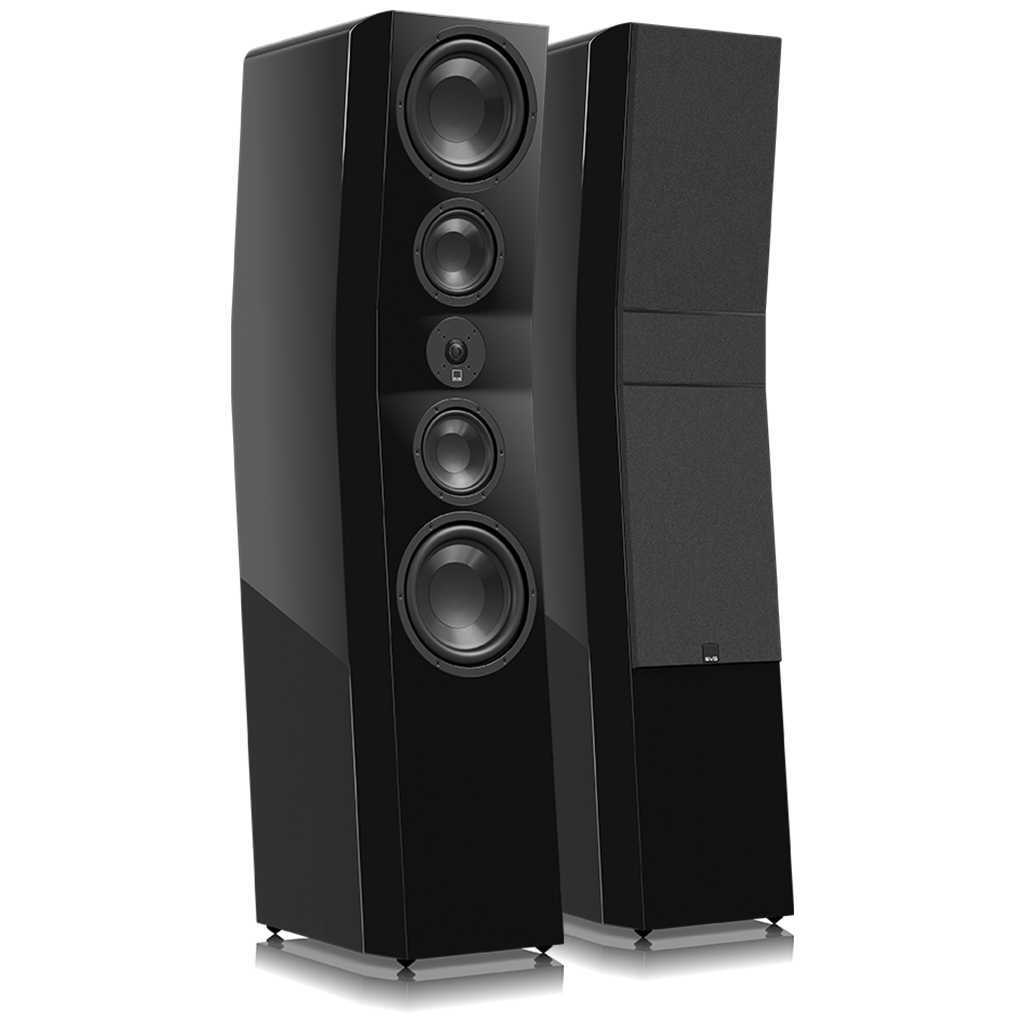

Piano Gloss Black
Piano Gloss Black

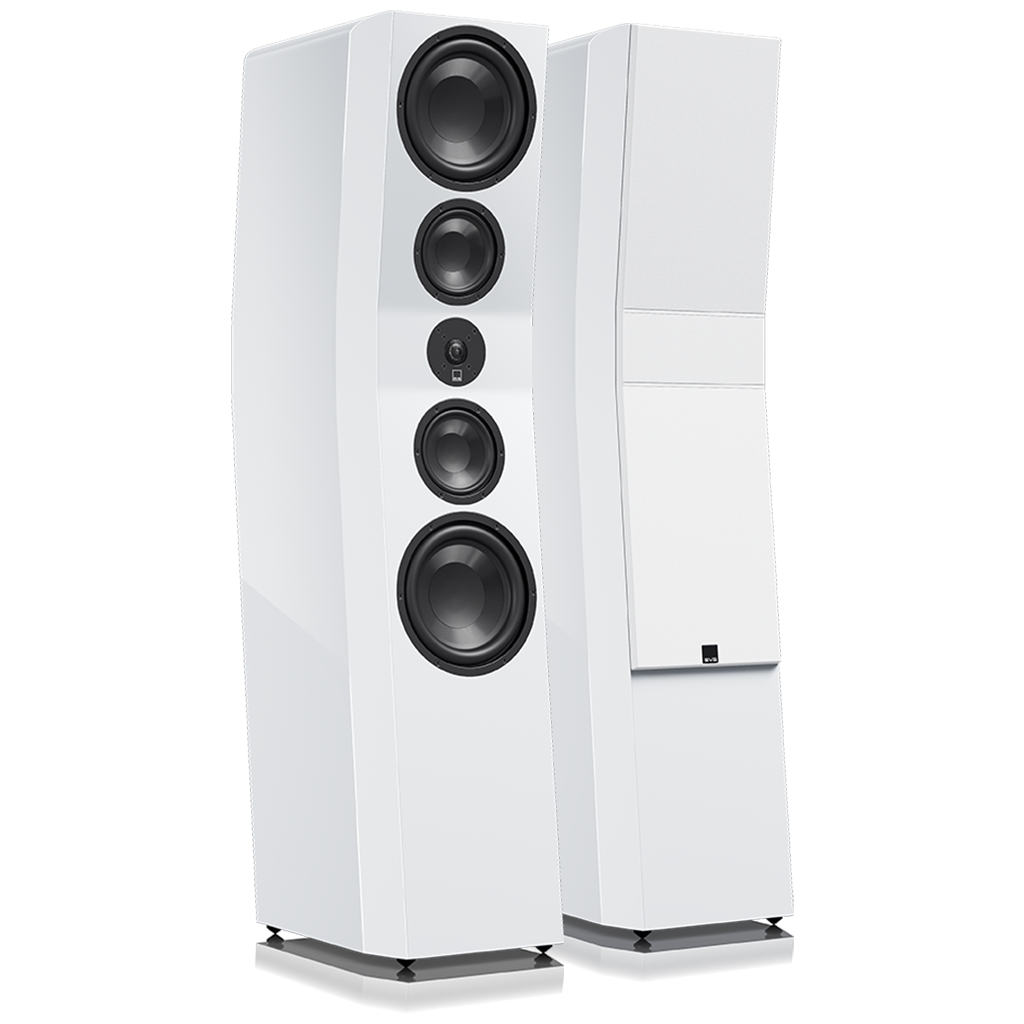

Piano Gloss White

$4,000.00 CAD

each

PRE-ORDER- Shipping soon. Our customer service team will reach out to confirm your shipping date once your order is placed.

    The Culmination of Sonic Obsession.

    Ultra Evolution Pinnacle represents the culmination of SVS breakthroughs in driver design, component materials, and cabinet architecture, married with a relentless passion for audio excellence. The science of sonic perfection in harmony with a love of convincing and immersive sound.

    Never has this fusion of design elements existed in a single speaker. Acoustically centered time alignment, diamond coated aluminum dome tweeters, force-balanced woofer array and other advancements embody an uncompromising approach to floorstanding speaker design

    Acoustic innovations are brought to life with painstaking anechoic and real-world measurement and voicing. This final bit of artistry places Ultra Evolution Pinnacle among the highest fidelity tower speakers ever created.

    Our mission has always been to ignite a passion for transcendent music and home theater experiences by rendering the truest sonic playback.

    The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Evolution Pinnacle deeply connects you to the emotion of sound.

    Frequency Response / Acoustic Data:

    • Frequency Response: 24Hz to 40kHz (+/-3 dB)
    • Nominal Impedance: 6 ohms
    • Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
    • Recommended amplifier power: 20 – 300 watts

    Speaker Specs:

    • Floor-standing Tower Loudspeaker

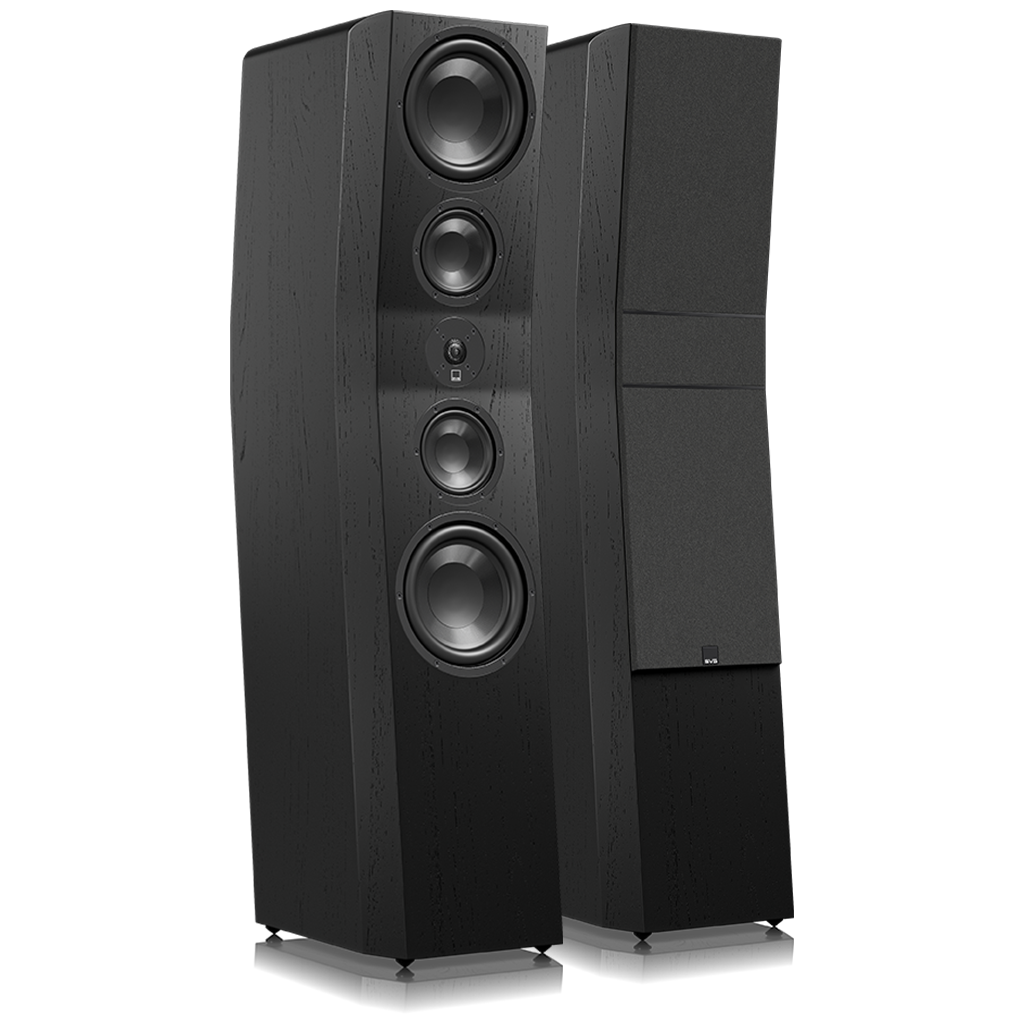

    • Piano gloss black, piano gloss white, real black oak veneer finish options
    • Dual gold-plated 5-way binding posts
    • Dual 3” wide-flared rear-firing ports 
    • Cloth grille with magnetic retention system
    • Elastomer screw-in feet – adjustable for level
    • Spiked metal screw-in feet included – adjustable for level
    • Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
    • Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D) (includes grille, feet, and binding posts)
    • Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)
    • Weight Packaged: 110.8 pounds / 50.3 kgs
    • Weight Unboxed: 96.7 pounds / 43.9 kgs

    Driver Specs:

    1” Diamond Coated Tweeter

    • FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
    • Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
    • Silver tinsel leads for optimal signal transfer and power handling.

    5.25” Midrange Drivers

    • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    • Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    • Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.

    8” Woofers:

    • Long stroke motor and suspension for high output.
    • Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
    • Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
    • Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

    Crossover & Cabinet Specs:

    Crossover:

    • 3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
    • Tweeter-to-Midrange crossover: 1.8 kHz
    • Midrange-to-woofer crossover: 140 Hz

    Cabinet:

    • Acoustically Centered Time Alignment architecture.
    • Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
    • Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener.   The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
    • Quad 8” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
    • Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
    • Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
    • Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
    • FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
